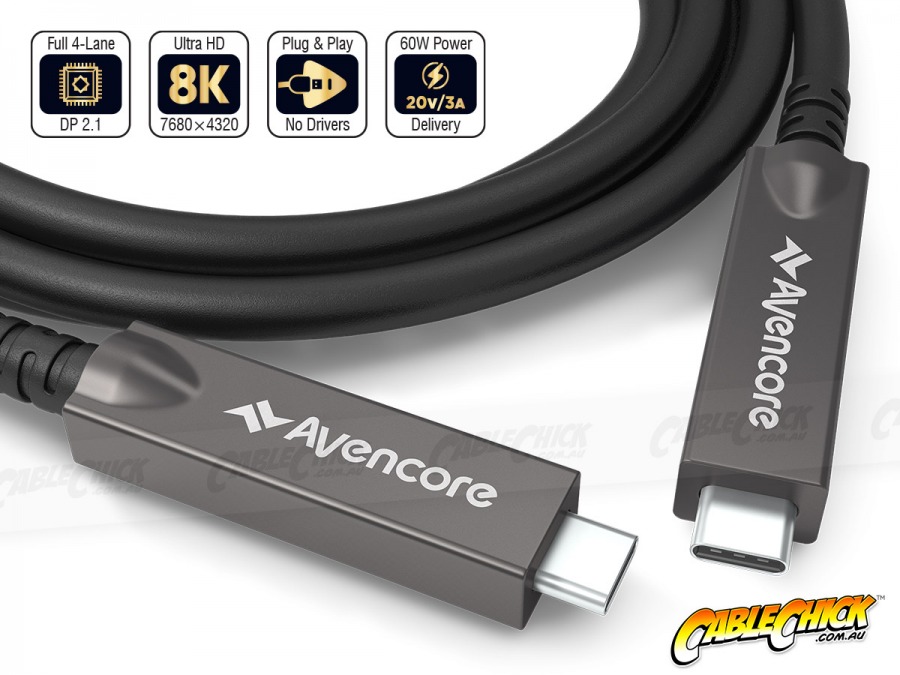

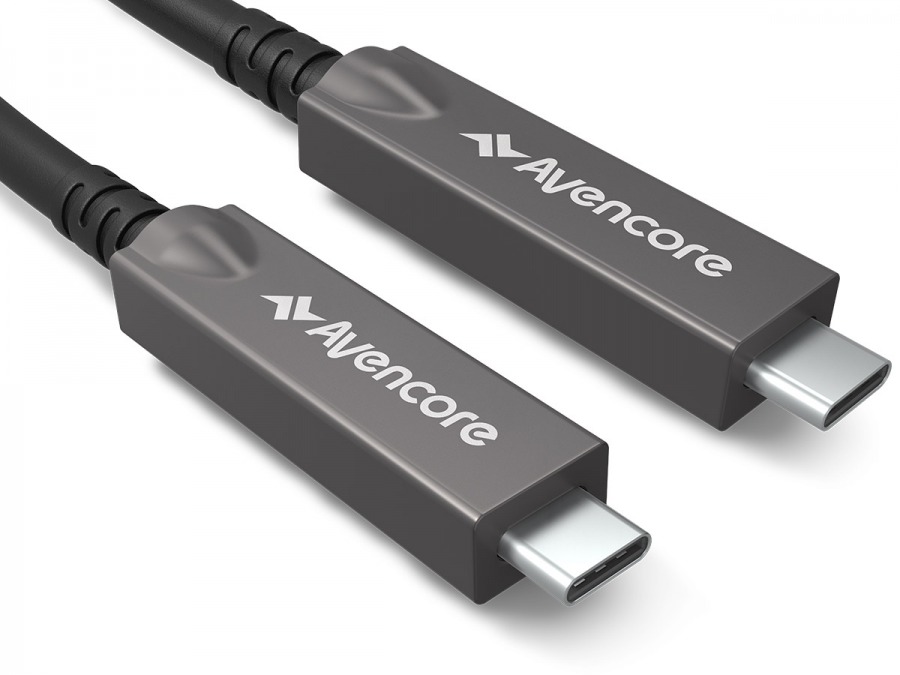

10m Avencore Carbon Series Active Optical USB Type-C (40Gbps, 60W)

Long-Distance USB-C Video, Data and Charging is now a reality thanks to hybrid firbre!

Full 4-Lane DisplayPort 2.1 with USB 2.0 + 60W PD
40Gbps video bandwidth with USB 2.0 (480Mbps) data allows for maximum video resolutions, including 12-bit 8K HDR @ 60Hz via DSC, with a small amount of USB data for peripherals like keyboard and mouse. 60 Watt charging is supplied to keep compatible smartphones and laptops running long-term.

Balanced 2-Lane DisplayPort 1.4 with USB 3.2 + 60W PD
16.2Gbps video bandwidth with USB 3.2 (20Gbps) data allows for resolutions like 4K @ 60Hz (or higher with DSC), plus a full 10Gbps read and 10Gbps write for USB peripherals including high speed memory cards and hard drives. 60W charging is also provided via USB Power Delivery.

This plug-and-play solution uses your preferred video mode to select which specification is best for your needs, so users looking to leverage Mode 2 for 20Gbps USB data transfer speeds should select a video resolution under 16.2Gbps (5K30, 4K60, WQHD120, etc) as DSC may not activate in Mode 2. You can also run this cable without a video link, for USB data only, but your maximum bandwidth is still 20Gbps total (10Gbps read / 10Gbps write)

USB-C Video Support

Many USB Type-C sources offer video and audio support when connecting to USB-C displays and hubs. DisplayPort Alt-Mode and Thunderbolt sources are compatible for video links, but extended Thunderbolt PCIe functions such as daisy-chaining are not supported.

Display Stream Compression (DSC) is supported, allowing for much higher video resolutions to be obtained. However, DSC is generally not user-configurable and relies on your source and display hardware to activate. For example, 4K HDR @ 240Hz is within scope when using DSC under Mode 1 (4-Lane DP 2.1). Other display configurations including 5K, UltraWide, WQHD, etc are also possible based on available bandwidth and connected hardware.

Video functions are directional. Ensure you connect the plugs marked source/display accordingly. USB data is bi-directional.

10m Avencore Carbon Series Active Optical USB Type-C Features:

• 5-Year Avencore Replacement Warranty
• 10m USB Type-C Cable (USBC Male to Male)
• 40 Gbps Total Bandwidth with Automatic Dual Specification (see below)
• Power Delivery up to 60W (20V/3A or less)
• DP Alt-Mode 2.1 Support on compatible hardware
• DP Alt-Mode 1.4 Support on compatible hardware
• Display Stream Compression (DSC) compatible
• Optical Fibre carriers for Video and USB data
• 24AWG Conductors for Power Delivery
• Suitable for Smartphones, Laptops, USBC Monitors and More
• No Drivers, No External Power
• Backwards compatible with USB 3.0, 2.0 and Thunderbolt 3
• High quality coaxial cable with TPE jacket
• Colour: Black TPE Jacket with Silver plugs

• Mode 1
  • 4-Lane DisplayPort 2.1 + USB 2.0 + 60W PD
  • 40Gbps video bandwidth via DP Alt-Mode
  • 8K/30Hz without DSC or 8K/60Hz HDR with DSC
  • USB 2.0 (480Mbps) total data read/write (potential)
• Mode 2
  • 2-Lane DisplayPort 1.4 + USB 3.2 + 60W PD
  • 16.2Gbps video bandwidth via DP Alt-Mode
  • 4K60Hz without DSC or 4K120Hz HDR with DSC
  • USB 3.2 (20Gbps) total data 10Gbps read & 10Gbps write (potential)

Note: Not all devices with USB Type-C sockets can support video. Check your hardware manuals for USB-C feature support.
