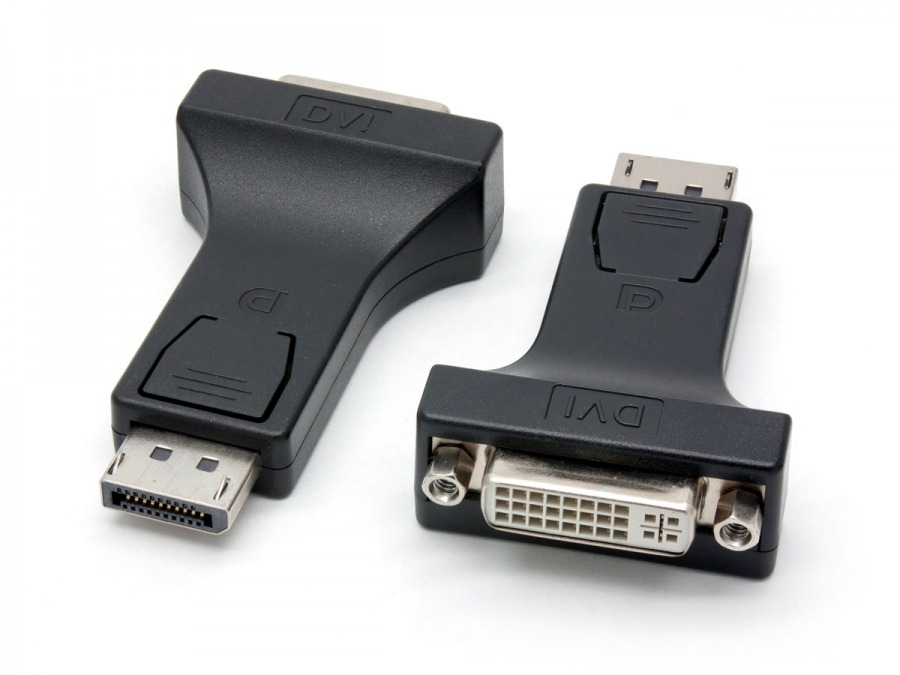

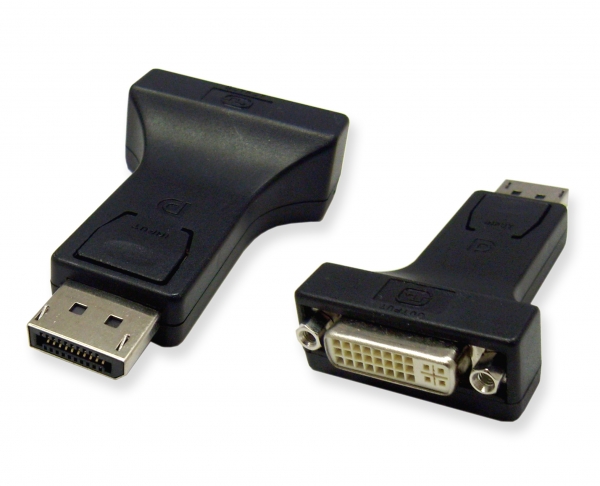

DisplayPort to DVI Adapter (Male to Female)

This passive DisplayPort (male) to DVI (female) adapter allows you to use DVI-D or digital DVI-I displays on Display Port sources. It is not bi-directional, and can only support video signals native to both DP and DVI up to a maximum of 1080p at 24bpp. Other computer resolutions may be achieveable depending on your equipment.

Compatibility

Please note that not all DisplayPort sources are equal, so you should check your product manual for D++ compatibility to ensure functionality with this adapter. Suitable for all digital DVI displays including Televisions and PC Monitors. This adaptor is not bi-directional, and does not convert DVI to DisplayPort.

Product Specifications:

• 5 year Cable Chick Warranty
• Uni-directional, the DisplayPort must be the source device, not the output device!
• Male DisplayPort Connector to Female DVI-I connector
• Perfect for converting a D++ Display Port Device for use with a DVI Screen
• Gold Plated Connectors for optimal signal transfer
• Supports DVI-D resolutions such as 576i, 576p, 720p, 1080i, 1080p plus many others.
• 3.6 Gbps Data tranfer rate (DVI Single Link Limit)

• Support for DPCP (Display Port Content Protection)
• Display Port D++ device with the ability to output DVI-D is required
• Colour: Black with Gold Connectors

DisplayPort Compatibility Note

DisplayPort (DP) adapters are not bi-directional, and require a DP output which is DP++ (Dual Mode) compatible. When a DisplayPort to DVI adapter is connected to a DP++ (Dual-Mode) output, the output device senses the presence of the adaptor and sends DVI signals over the DisplayPort connector rather than DisplayPort signals. No signal conversion is performed by the adapter. DVI signals are merely passed through.
