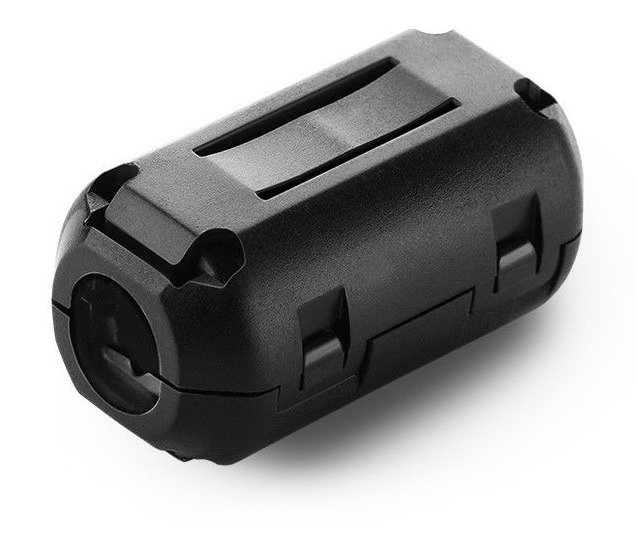

Ferrite Core RFI and EMI Noise Suppressor Cable Clip (5mm)

Superior EMI suppression for your high-end gear! Suits cable diameters up to 5mm

Also known as an EMI filter, Ferrite Choke, Ferrite Bead, Ferrite Block or Ferrite Ring.

Witness as I attempt to explain how ferrite cores work, without going into a deep dive into the physics of the electromagnetic spectrum and nuclear forces. Ferrite cores work by preventing EM interference in two directions, protecting the cable from outside interference and ALSO preventing the cable from emitting signals. Any cable with any kind of metal inside it (most any cable) will act as an antenna. If the devices you've connected your cable to produce RFI or EMI (most any electronic device) then the cable will transmit and emit these signals as noise, along with the signal they're meant to be transmitting. Also, if there's RFI or EMI in the area of the cable, such as other electronic household appliances, the cable will again act as an antenna, receiving these unwanted signals. Ferrite cores, being a conductive and magnetic ceramic, concentrate electromagnetic signals and dissipate them as heat. Don't worry, they don't get hot!

Having said that, a lot of cables these days are actually already up to the task of handling unwanted RFI or EMI. They're usually well made and shielded (at least mine are and designed to handle their expected environments. However, sometimes a cable is used in situations where it's pushed to its limits, most commonly where extra long cables are used in place of more common lengths. In these cases, a ferrite core can help improve signal quality. Grab a pair of cores for a long TV antenna cable or USB cable for example, if you're getting poor signals or dropouts you should immediately notice a difference once the cores are installed. Additionally, if your sensitive AV equipment is picking up noise, such as in a home theatre, installing ferrite cores on your cables might help reduce it!

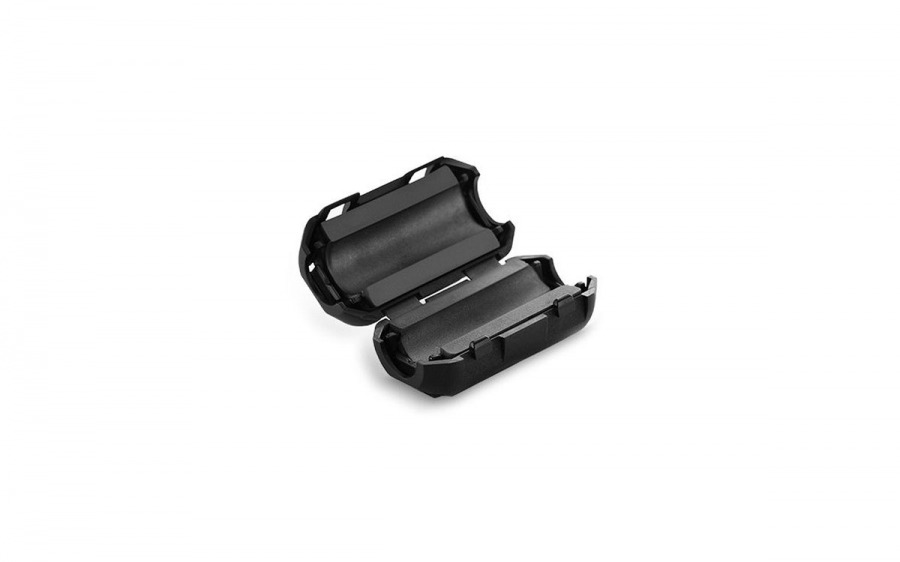

Speaking of installation, it's literally a snap! All you need to do is clip a ferrite core on to each end of the cable, around 10cm from the connectors, easy! These particular cores are designed for cables that are 3.5mm to 5.5mm wide, we also have a larger core for thicker cables here.

Applications

• High speed data lines inparticular LAN network & Ethernet cabling
• Reduce influence for your electronics from Wi-Fi, Bluetooth and mobile phone radiation
• Reduce disturbance to USB 2.0, USB 3.0 and USB-C high-bandwidth transmissions
• Minimize the interference by fast circuits and SMPS
• Suppression of the harmonic waves and no damping for the signal below 100 MHz
• Improved performance of high DC current applications experiencing interference (eg: power supplies, electric motors etc)
• Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories

Details and Specifications:

• 5 Year Cable Chick Warranty!
• Ferrite Core, designed to reduce interference with your cables
• Inner diameter: 5mm
• Designed for cables from 3.5mm up to 5mm in diameter
• Especially helpful for EMI problems in frequency range of 100MHz up to 1GHz
• Data signals up to 100MHz will not be effected
• Length: 25mm
• Width: 13mm
• Colour: Black
