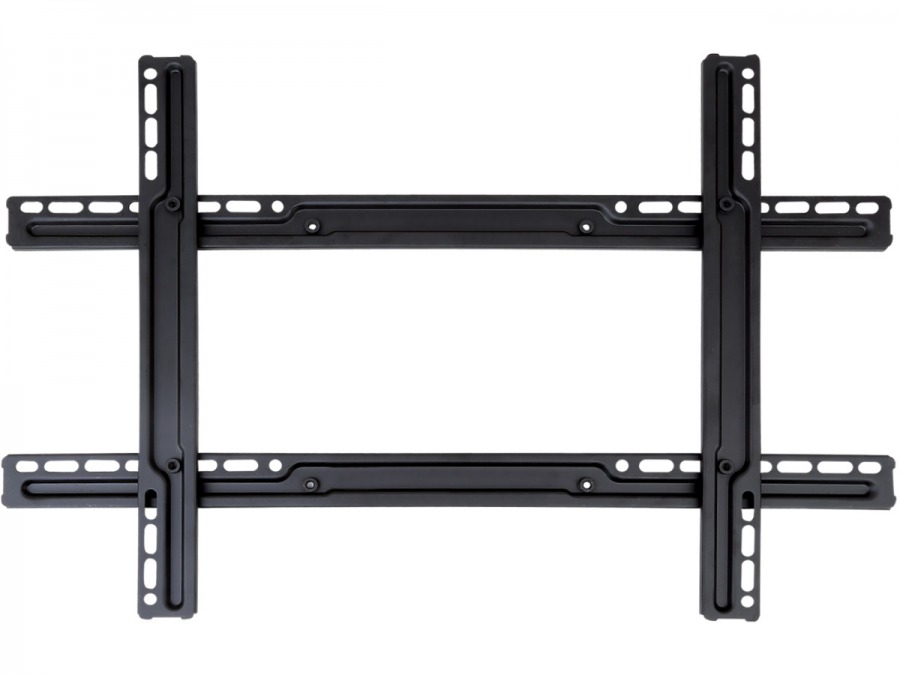

Expand the capacity and versatility of your current mount with this VESA Adapter kit.
Just bought a new screen, only to find out that the mounting plate on your old wall, ceiling or desk-mount isn't the right size to fit it? Before now, you might have thrown the old bracket out, but you don't have to do that anymore! If your old bracket has a hole spacing of 200x200mm, this adapter plate will bridge the gap to larger televisions with bolt hole spacing up to 600x400mm!
Now, I want to be clear here: This isn't a wall bracket or a desk mount - this is just an adapter plate which can increase the size of your current bracket or mount with ease, and it needs an existing 200x200 plate to start. You just have to make sure that your current mount is weight rated to accept both your new screen and the extra kilo of weight this adapter plate brings. Other than that, it's clear sailing!
So take your VESA200 mount up to a 300x300, 400x400 or 600x400 pattern - either permanently or temporarily - to suit a larger TV! It even comes with a set of screws and washers so you probably won't need a trip to the local hardware store for supplies.
Requirements:
- This adapter plate attaches to an existing mount or bracket with mounting holes at 200mm square (VESA 200).
- This adapter can accomodate screens with mounting holes at between 300 to 600mm on the horizontal and 300 to 400mm on the vertical, including VESA standards like 400x400 and 600x400.
- Existing bracket must have weight rating to support the new TV + 1kg adapter.
Features:
- 5 Year Cable Chick Warranty
- Suits televisions and monitors with VESA mounting holes 300x300 to 600x400
- Suits Brackets with VESA mounting holes 200x200
- Parts bag included

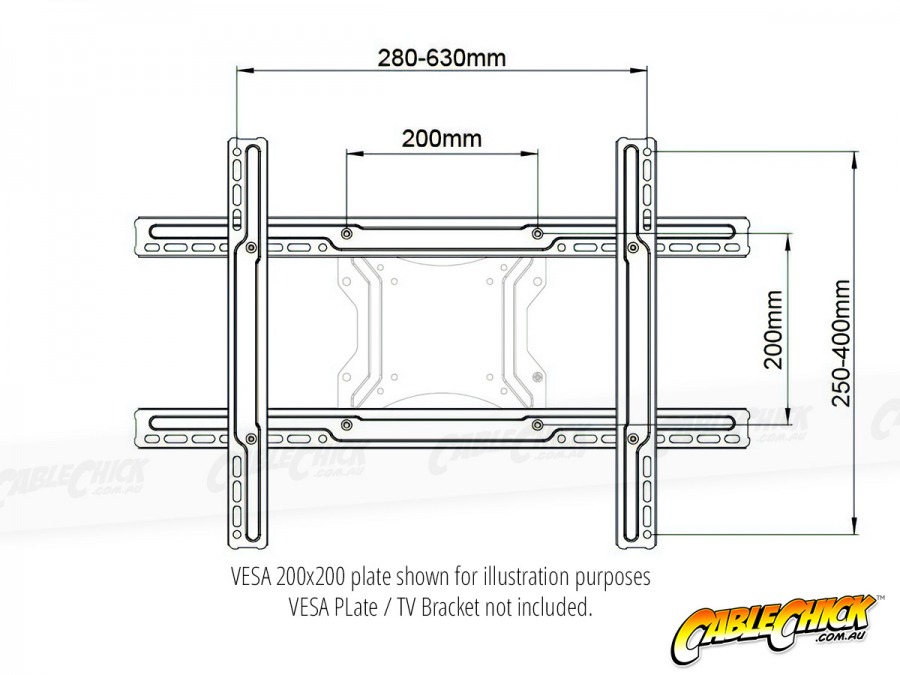

- Assembled adapter dimensions: 640mm (W) x 420mm (H)
- Weight rating: Same as your current bracket or mount (not included)
- Solid steel construction
- Colour: Black
Please note: As with all wall and ceiling brackets, timber studs or beams are essential for proper, safe mounting. Due to the size of this item, Express Delivery is not available outside of Metro Brisbane.
Why shop with Cable Chick
- Australia's leading retailer of AV cables and tech accessories
- Flat-rate shipping nation wide
- Secure online shopping 24/7
- 14 years experience with 1000's of health, government & education clients
- ALL products locally stocked for same-day dispatch
- Industry leading warranties up to 5-years on products
- A customer base of over 250k+ Australians who trust Cable Chick
- Proudly to be 100% Australian, employing all local staff
Posted: 14th Jan, 2015
Question:
Will the universal mount adapter plate allow a 200x200 vesa tv to be mounted on a 200x 100 vesa wall bracket?
Answer:
"While these adapter plates can be used to convert down, unfortunately the bolt holes at the 200mm spacing would conflict in your example as both the bracket and the TV would need to use them at once.
This isn't something that the parts that come with the adapter plate allow for, and is thus a function not covered under warranty even if you provided your own bolts and/or spacers."
Posted: 30th March, 2015
Question:
Will the universal mount adapter plate allow a 200x300 vesa tv to be mounted on a 200x200 crest wall bracket?
Answer:
"Absolutely. You may need to use some spacers to give you enough clearance to tighten the bolts as the two sets of holes you need to use are quite close together, and you may need to mount the plate to the bracket first and the TV second, which would require two people. Otherwise, the adapter plate is definitely compatible."
Posted: 11th May, 2015
Question:
I want to mount a small Brix computer behind a TV. The computer comes with a 100x100 mounting plate. The TV has mounting holes at 200x100 would this adapter be suitable? Does the adapter come with screws? Thanks?
Answer:
"Yes, though you may find our smaller adapter plate (Product code: MT0512) easier to work with. Both include a parts bag with screws. Spacers may also be required to give enough clearance for the bolt heads since they will be so close together. It may be a little trickier than normal, but they're definitely usable this way."
Posted: 1st Feb, 2016
Question:
Will this product convert a 100x100 bracket to suit a 200x100 Monitor/TV ?
Answer:
"Yes. Slotted holes are available for the 'in-between' VESA standards such as 200x100 and 300x200, etc. At worst, some additional spacers (not included) may be required to give clearance for bolt heads or tools when using holes so close together - some suitably sized washers from your local hardware store can work for this purpose."
Posted: 5th Jan, 2017
Question:
Can I mount a TV with a 200 x 300 vesa size on a mount that uses vesa 100 with this mount?
Answer:
"Yes, this will suit a 200 x 300mm VESA pattern."
